Planet Hunter NGTS at the UK Exoplanet Meeting 2022

This week, I was in Edinburgh for the UK Exoplanet Meeting 2022 (UKExom22, for short) where I presented details of the project and the results so far from Planet Hunters NGTS, including details on our 4 new planet candidates. This was an opportunity to showcase the brilliant work of the Planet Hunters NGTS volunteers to an audience of over 100 exoplanet astronomers based in the UK, as well as a chance to meet (in some cases for the first time!) and speak with members of the NGTS team who have been working hard to help us vet the best candidates from the project and coordinate follow-up observations.

The first day of talks included some exciting results from the new JWST mission as well as techniques being employed to try and detect Earth-analogues which are currently difficult to find due to stellar activity! Later in the afternoon, I gave a 12-minute presentation describing why citizen science is so great, how Planet Hunters NGTS works and what we know so far about our new planet candidates. There was plenty of interest in the project from the audience who were impressed by both the enthusiasm of the Planet Hunters NGTS volunteers and the fact we already have four new planet candidates from our very preliminary analysis.
Day two of the conference started with more interesting talks including hearing about the current status of the PLATO mission and the results of the ASTEP telescopes that are helping the hunt for exoplanets at an observatory out in Antarctica! The relaxed schedule of the afternoon provided the opportunity for me to meet with another member of the Planet Hunters NGTS team, Sam Gill, who can fit the NGTS data with better models than the initial search to provide us with more accurate estimates of the planetary radius. Below is an image of the output of Sam’s work, showing more plots of each transit and the phase folded light curve fitted with a more accurate model. I was also able to speak with Matt Burleigh and Alicia Kendall, collaborators from NGTS who obtained more photometry of some of our candidates discussed in the previous blog post and will be able to combine data from multiple data sources to provide us with a more accurate radius estimate for Subject 69654531.

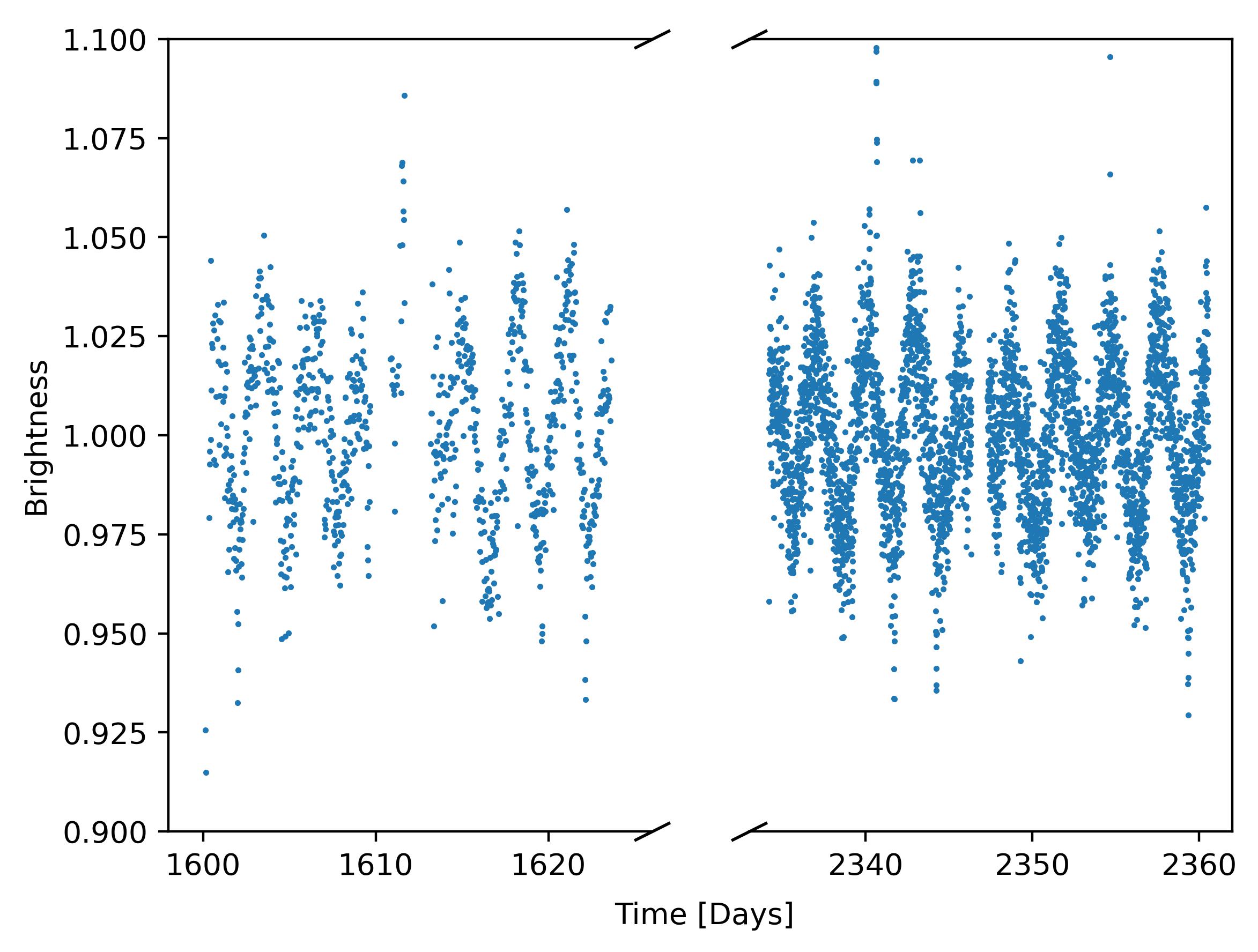

Image of a laptop screen showing graphical plots of light curves

It’s not all about science at a conference as Tuesday evening saw many make the short trek up Blackford Hill which is home to the Royal Observatory Edinburgh and provides excellent views of Edinburgh Castle, Arthur’s Seat and the sunshine on Leith. The conference dinner and a trip to a Karaoke bar that had a large number of astronomers attempting to sing Bohemian Rhapsody capped the second day of the conference.

The final day of the conference included talks on improved techniques for measuring the radial velocity of stars which will allow more accurate measurements of exoplanets and the first direct detection of planetary material being accreted by a white dwarf. This discovery was made by detecting 5 (yes, only five!) X-ray photons being emitted by a white dwarf which was then determined to be due to remnants of a planet falling into the atmosphere of the white dwarf.

That brought to an end my first in-person UK Exoplanet Meeting and I’m already looking forward to next year’s meeting that will be hosted by UCL in London! In the meantime, I’ll be vetting more candidates from the project and coordinating follow-up observations as well as considering applying for additional observing time that would potentially help us get closer to validating or confirming some of the candidates already mentioned or any others that we find in the coming months. Keep an eye on the blog to stay tuned!

Landscape image of Edinburgh from Blackford Hill
Advertisement

Planet Hunters NGTS: More detail on our first four Planet Candidates

You may have seen my previous post announcing that we have 4 new planet candidates discovered by Planet Hunters NGTS, if not you can find it here. We wanted to give you some more information on what we know about each candidate so far and the efforts we’ve made to gather follow-up data as we work towards ascertaining whether or not they’re real exoplanets! The first step once we decided that these candidates were worthy of further investigation was to fit the data using a more intricate model. This is typically what’s meant by phrases like “modelling estimates” or “fit results” that you may see below or in other pieces of science communication. Each of these candidates pose their own unique challenges in being able to confirm whether they’re really planets, however to already have 4 planet candidates is a promising sign for the future of the project and a real testament to the brilliant work put in by you, the Planet Hunters NGTS volunteers.

Subject 69695263: This is our most promising candidate so far as the transits look quite clear and our modelling estimates give encouraging results. We think this is a hot Jupiter orbiting a “K dwarf star,” which is a star slightly smaller and cooler than our Sun. We’ve estimated that the planet candidate has a radius equal to 1.09 times the radius of Jupiter, which we write as Rp=1.09 RJup. It orbits its host star every 1.74 days which means by the time you turn 18 Earth-years-old, you’d be almost 3800 years-old on this planet candidate (if it exists, and assuming you could live on it, which you can’t). We have received data from the Zorro team for this candidate (read more about the Zorro instrument and our follow-up efforts here), and it shows that the host star is isolated from other stars as far as we can tell, which means that we can be slightly more confident that this isn’t a false positive signal caused by an eclipsing binary! There’s still plenty of work to do before we can approach the possibility of confirming or validating this as a planet, but we’re cautiously optimistic about this candidate.

Subject 69593857:

This candidate has been causing something of a headache since we only managed to observe one full transit and a number of partial transits (i.e. we only see the start or end of the transit). We have estimated that the potential orbiting body has an orbital period of 3.97 days however our radius estimates range from Jupiter-sized up to a radius not much smaller than our Sun. This suggests we could have a planet candidate but it could also be what’s known as an eclipsing binary with low mass (EBLM). While these are interesting systems, they’re not the planets we’re looking for! We do have Zorro data for this candidate and we can’t see another star nearby however it’s possible that the signal could be a false positive caused by “systematics” which is a general term for any trend in the data that might not have been accounted for during processing.

Subject 69473954:

Much like the candidate above, this candidate is a troublesome one. The transits appear to be grazing (check out this post for a description of grazing transits) which makes it tricky to get a good estimate of the radius of the candidate. The radius of the planet candidate is estimated to be at least Rp=1.50 RJup which is already at the upper limit for what we believe can be a planet. Our upper estimate of the radius is one solar radius, meaning this could be a standard eclipsing binary. Sadly we don’t have Zorro data for this candidate to be able to check this just yet. This candidate, and the previous one, will require some more investigation to really understand what they actually are.

Subject 69654531:

Lastly, this candidate is very exciting because if our initial estimates are correct, this would be one of only a handful of discoveries to date of giant planets orbiting close to their small host star. The transit depth of ~12% is much deeper than we typically expect for exoplanet transits, however the host star has a radius equal to only 1/3rd the radius of our Sun. Therefore, we believe this could be a hot Jupiter, with a radius of Rp=1.13 RJup, orbiting an M dwarf star on a 2.10 day period. These types of systems are very rare and really surprising to find because our current understanding of how planets form suggests that such a large planet shouldn’t be able to form around such a small star because there simply shouldn’t be enough time for it to form or planet building material available. The Zorro data for this candidate is also encouraging as we see no companion stars. We hope to gather more data on this object in the coming months if possible, so stay tuned!

These four NEW candidates are really exciting! They weren’t spotted in the initial check of the data by the NGTS team which means that the Planet Hunters NGTS project has proven it really has the potential to be a complimentary search to help NGTS discover as many planets as possible. We couldn’t have done this without the help of everyone who’s classified subjects on Planet Hunters NGTS and we’re eager to see what else you can help us find in the future as there are still plenty of subjects to be classified! I’ll be presenting these candidates next week at the UK Exoplanet Meeting in Edinburgh before checking the latest results from the project for more possible planet candidates. We’ll also be starting to write up the first results from the project into a paper to be submitted to an academic journal!

Planet Hunters NGTS: Potential Planet Candidates

Today, I presented the latest Planet Hunters NGTS results at the UK’s National Astronomy Meeting in the University of Warwick. Good news everyone! I am very excited to announce that we have four new planet candidates have been found by Planet Hunters NGTS. In addition, we have been able to get some observations of three of these new potential planet candidates with the Gemini South telescope in Chile!

I have spent the past several months developing a software pipeline to combine all of your assessments together for the various workflows that make up the website. This sifts through the candidates output from the NGTS algorithms to look for any new possible planets. In my preliminary search through the classifications available, I took the best candidates that were classified in the Secondary Eclipse Check and Odd/Even Transit Check and shared our findings with the rest of the NGTS team. Four of these candidates look like possible planet transiting planets and are shown in Figure 1.

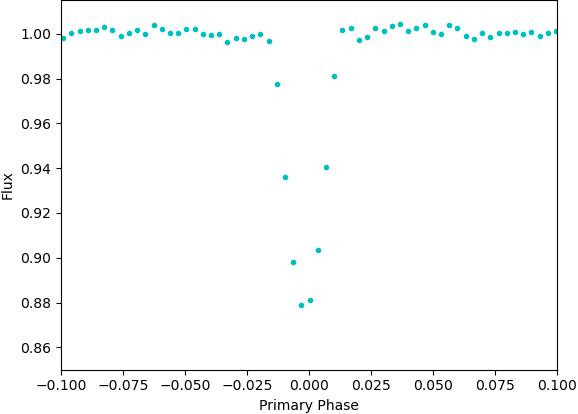

Figure 1: Our 4 potential planet candidates!

There’s a lot of work that needs to be done to go from planet candidate to bonafide planet, so the four objects are still planet candidates. To confirm possible transit events requires using additional detection methods to get the mass of the orbiting body that confirm it has a mass less than a star or additional observations that can help statistically rule out the possible astrophysical false positives that can mimic planet transits (like eclipsing binaries). These candidates are around faint stars which will make validating these planets a tricky process.

Three of our planet candidates were observed in the past month to get follow-up observations. We worked with our collaborators in the US to apply for observing time on the Gemini South telescope. This involves: justifying why our candidates are interesting (there’s a lot of really interesting science that people want to do that we have to compete with!); justifying why the Gemini telescopes and Zorro instrument (see next paragraph) are the best tools for the job (in this case, Zorro is one of only a few instruments in the world that can carry out the kind of observation we need, another being ‘Alopeke on the Gemini North telescope in Hawaii); and calculating how much time we’d need to use the telescope for.

The instrument we are using is the ‘Zorro Speckle Imager.’ Zorro takes lots of images of the star in quick succession, which allows us to “freeze out” the effects of the Earth’s atmosphere that causes light from stars to be distorted (this effect is known as atmospheric seeing, see Figure 2). This allows us to spot whether there are any other stars so close to our targets that the NGTS telescopes couldn’t tell them apart. These background stars contaminate the light we measure for the main target star and dilute eclipsing binary light curves such that we can’t see the secondary transits, mimicking what we would observe for a true transiting planet. This isn’t a design flaw in NGTS but a reality of how different telescopes are built for different purposes. For example, Zorro isn’t designed to survey our targets for the long timespan, like NGTS has, in order to spot these transits in the first place. Using different telescopes for exoplanet follow-up and confirmation is much like a football (soccer) team: if the defenders don’t win the ball from the opposition (NGTS spotting transits), they can’t then pass it to the midfielders to move it up the pitch (Zorro checking for other stars).

Figure 1: Gif of Betelgeuse viewed from the ground through a large telescope with a very short exposure time. The Earth’s atmosphere causes distortion of the light from the star. Credit: NASA APOD

Our observations were carried out by the excellent team of astronomers and support staff at Gemini and NASA a few weeks ago and we’re hoping to be sent the full final results soon.

What about the strikers in our analogy? If we find out that these targets are solo stars, that isn’t the final step in confirming an exoplanet (it’s also a big IF). We’d ideally take “radial velocity” measurements which allow us to measure the mass of the exoplanet. This technique works by detecting how much a star is “wobbling.” This wobbling is caused by the exoplanet orbiting the star and the amount of wobble relates to how much mass the exoplanet has. When we say the planets orbit the Sun, really we mean the planets AND the Sun orbit the entire Solar System’s common centre of mass. It just happens to be that this point is very close to the Sun since it’s so big. It’s the same story for exoplanets and their stars. The radial velocity measurements take the role of the striker in our analogy, although it’s important to say that this wouldn’t be the end of it and there’s still plenty other tests to do and data that we have to gather to confirm if any of these candidates are real exoplanets. If we’re unable to take radial velocity measurements then we can potentially use “multicolour photometry” to help towards validating the candidate. This involves checking whether the depth of the transit is the same when we observe the star with different filters on a telescope. These filters only let certain colours of light through, similar to how you’d mainly see pink if you wore Elton John’s famous tinted glasses. If there’s a difference in the depth then it suggests that there is a background eclipsing binary system that is mimicking the transit of an exoplanet. The difference in depth would be because stars have different colours depending on how hot they are, so if we see a shallower or deeper transit using a different filter it is because a background star isn’t as bright in that filter. For these four stars, getting radial velocity observations will be tough as they are very faint and would require lots of time on the world’s largest telescopes, but the first step is to see what the Zorro observations say. Once we can analyse and interpret the Zorro data, we will decide on the next steps.

 It’s very exciting to have candidates. Even if we can’t confirm these candidates as official planets, just finding these is an important step. We can still use these planet candidates to estimate the rate of exoplanets around the stars observed by NGTS. Thank you to everyone who has contributed to our project so far, whether it’s been through classifying light curves or getting involved with discussing potential candidates and weird subjects on the Talk boards. We couldn’t have done this without you. Also thank you to the extremely helpful team of instrument scientists at Gemini who helped us to setup our observations and the team at NASA for processing our data.

We also have many more subjects from the Exoplanet Transit Search still to sift through with the Secondary Eclipse and Odd/Even Transit checks. I performed an initial search, so there is much more I will be doing in terms of analysis of the classification data over the next many months. I am very hopeful that there will be even more candidates to find!  Stay tuned! We’ll keep everyone posted on the blog.

Planet Hunters NGTS: NI Science Festival

Last week was the Northern Ireland Science Festival, which aims to promote all kinds of science being done across the country and beyond! Since Planet Hunters NGTS is run primarily by researchers at Queen’s University Belfast, we, along with colleagues across the Astrophysics Research Centre, decided we’d get involved by making some videos to excite people about astronomy and hopefully try to teach some real science along the way.

Always looking for ways to promote Planet Hunters NGTS and get more people involved with hunting for exoplanets, we saw this as the perfect opportunity to advertise the project, and what better way to do so than to film a fast-talking, used-car salesman-style infomercial including some whacky special effects. You can watch the minute-long clip on YouTube here!

But that’s not all, Planet Hunters NGTS also became the sponsor of the fictitious Astro News Bulletin. The science is real and the bad jokes are sadly real, but you won’t find these newscaster on any mainstream channel.

There are 8 other excellent videos from members of the Astrophysics Research Centre to watch by following the link to the playlist here. Take a tour of some exoplanets; bake a comet; or see what it is us astronomers do all day!

Planet Hunters NGTS German Translation

Today we have a guest post by Ruth Titz-Weider. Ruth is a researcher at the Institute for Planetary Research of DLR (German Aerospace Center) in Berlin.

We have translated the Planet Hunters NGTS website into German: Planetenjäger NGTS.

It’s ideal to bring real data of real exoplanet research to volunteers, students, and teachers in German speaking environments.

The Planets Hunters NGTS website is ideal to get people close to our exoplanet research activities at DLR, Institut für Planetenforschung, in Berlin. DLR has been supporting NGTS with the funding of eight cameras and is part of the scientific team. We are planning a teacher training before the summer holiday where we will use the Planet Hunters NGTS as a sort of hands-on-experiment.

False Positives: W-shaped transits

Computers are amazing, but sometimes they do something unexpected. In this blog post, we explain the reason you sometimes find a W-shaped transit on Planet Hunters NGTS.

On Planet Hunters NGTS, we show you phase-folded light curves which are images produced by a computer algorithm that has calculated the best guess at the period of the transiting object (if there is one!). You can read more about how this is done in this blog post. However, sometimes the computer algorithm might calculate this period incorrectly. This can happen for a number of reasons but quite often it can be due to a deep secondary transit in an eclipsing binary system that the algorithm misinterprets as another primary transit. In the image below, the primary transits are the deep transits when the yellow star is completely blocked (occulted) by the redder star. The secondary transit is the shallower dip in the centre of the plot when the smaller star is blocking part of the large, red star. Note that this plot shows both the raw data points in grey and the binned data in red (explained below).

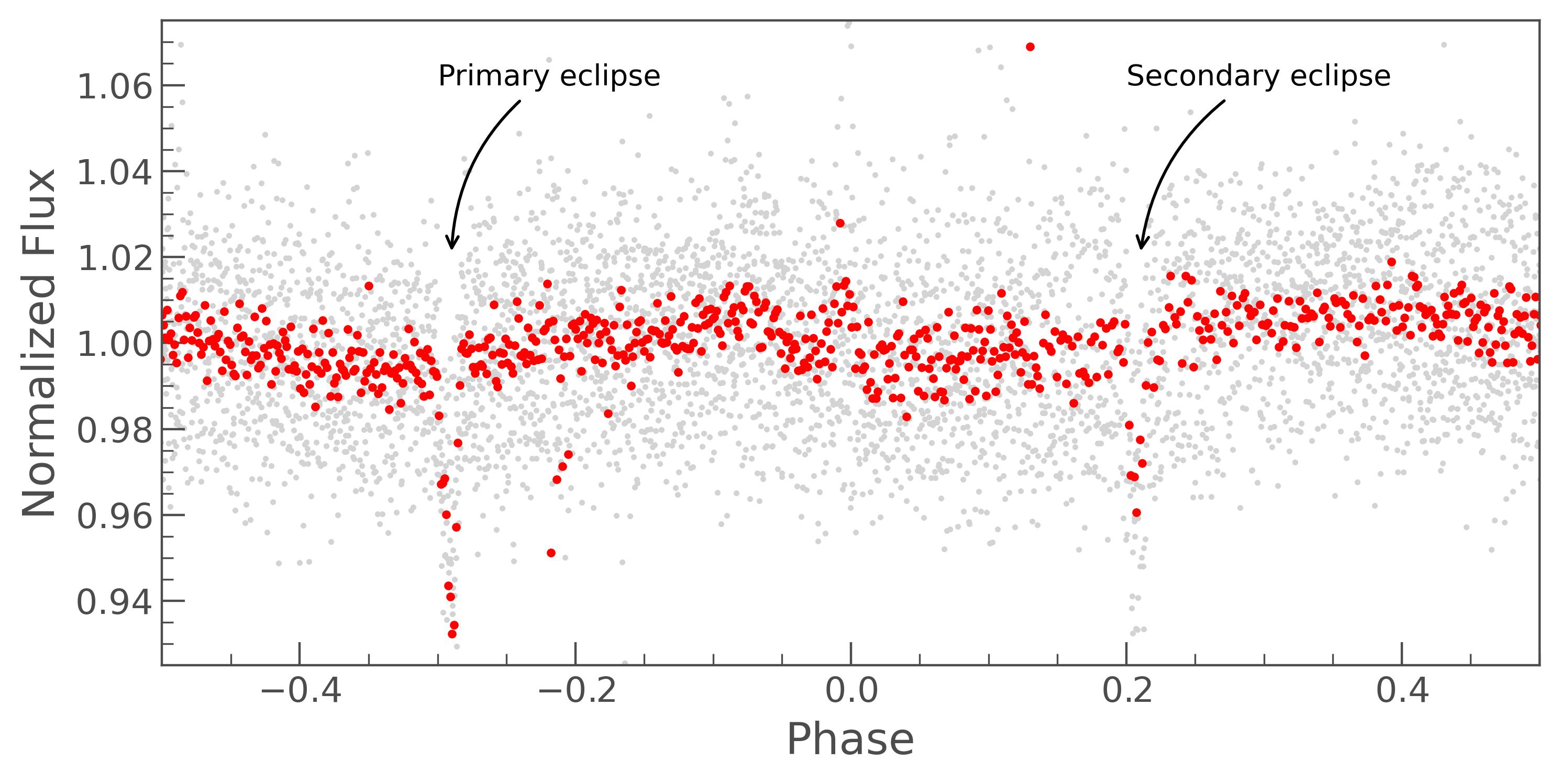

Figure 1: Diagram of an eclipsing binary system and a section of its light curve

In the example above, the primary transits are at 0.5 and 3.0 days therefore the true orbital period is the difference between them, 2.5 days. If the computer correctly identifies this then you would be presented with an image zoomed in on the primary transit. However, if the algorithm doesn’t correctly notice the difference in depths then it may calculate the period to be 1.25 days, half of the true period, as it believes the shallow transit in the middle to be another primary transit. Once the algorithm has determined a period, it “bins” the raw data points (grey) to create the red data points. This means that we calculate the average flux of all the points in a set time window, which is referred to as a bin. Each red point in the plot above corresponds to a 30 minute bin and will contain around 140 raw data points on average since the NGTS telescopes take an image of the sky every 13 seconds. (The telescope cameras use 10 second exposures, followed by a 3 second delay before the next exposure while the shutter closes and the camera CCD reads out the flux on each pixel).

If the algorithm has folded the primary and secondary transit points on top of each other, as shown below, then the binning process will combine the raw fluxes into an average value somewhere in between the true flux values. This results in the erroneous W-shaped transit!

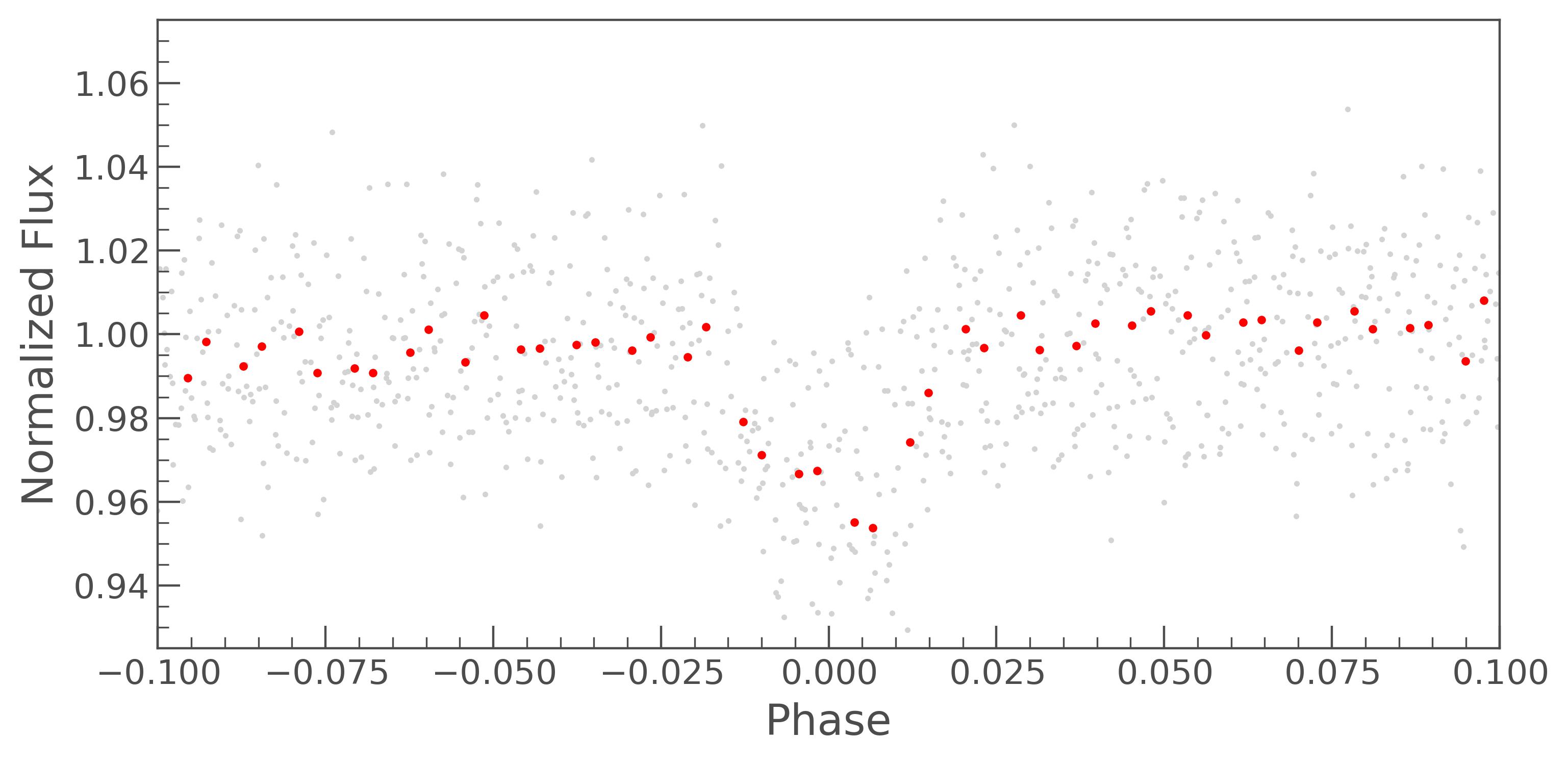

Figure 2: An eclipsing binary folded using half the true orbital period

The next figure is an image from the Planet Hunters NGTS site that shows this W-shape, although it’s only a very slight effect. In this case, the subject gained enough votes to be pushed through to the odd/even transit depth check. This is expected since we yet don’t have a classification option for W-shaped transits.

Figure 3: W-shaped transit on Planet Hunters NGTS

The odd/even transit check allows us to straight away spot the different depths of the primary and secondary transit. We can see that the magenta points correspond to the deeper primary transit while the green points show the shallower secondary transit. The distinct V-shape of both transits, as well as the rising flux after the transit are stereotypical of eclipsing binary systems.

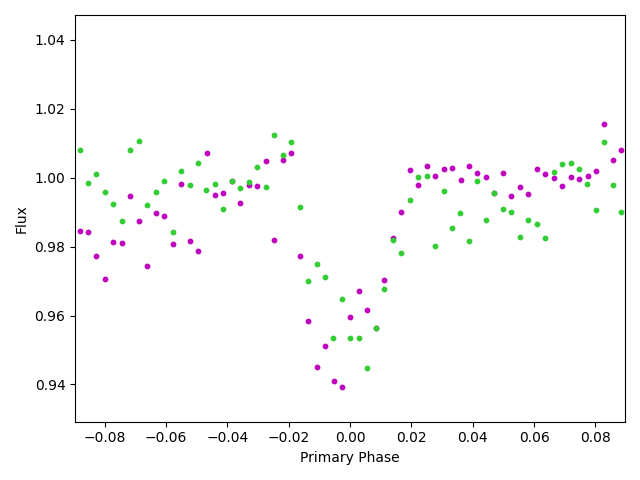

Figure 4: Odd/Even transit check for a “W-shaped” transit

If you spot something like this, then try to classify the shape of the transit as best you can into either U or V-shape. In the case of the example above, I’d choose V-shaped, but if you need more help then check out this blog post. Also, feel free to mark it as #w-shaped on the Talk channel, it helps us to check why this happens when our computer processes the data. Once we have analysed the rate at which this kind of transit shape occurs, we may introduce a W-shaped classification category to the interface, allowing you to more easily help us filter out these false positives.

Planet Hunters NGTS: Metadata

In this blog post, we explain the meaning of, and how to use, the different values and info given in the subject metadata on Planet Hunters NGTS.

On Planet Hunters NGTS, once you classify a subject you can choose ‘Done’ to move to the next subject and keep classifying, or you can choose ‘Done & Talk’ if you want to start a discussion with the Planet Hunters community about anything interesting you may have found. When you are looking at a subject image in the Talk discussion boards, you’ll be able to access the subject metadata by clicking the ‘i in a circle’ button. This metadata is additional info about the subject, some of which will be interesting to Zooniverse users wanting to delve deeper into their classifications.

Figure 1: How to find the metadata

Once you click the metadata icon, you’ll find a varying number of information fields, depending on whether the subject has linked images or is a known planet, but more on that later.

Figure 2: Metadata

The first field is ‘sde’ which stands for ‘Signal Detection Efficiency.’ This value can be interpreted as how “strong” the signal is, according to the computer algorithm. The calculation of this value is described in Kovács et al. (2002) which describes the Box-fitting Least Squares (BLS) algorithm that forms the basis for the NGTS exoplanet transit searches.

As a demonstration, consider a full light curve (not phase-folded) such as the image below (which uses artificial data). I’ve injected a transit with a 3-day period into the light curve and we’re going to use a BLS algorithm to search for this.

Figure 3: Simulated full light curve with 3-day period transiting object

I’ve used the AstroPy package’s BLS periodogram tool. This calculates the ‘power’ for a range of periods, this ‘power’ is equivalent to our SDE value mentioned above. The resulting ‘periodogram’ is plotted in the figure below. This shows the power value plotted against period with peaks in the periodogram corresponding to where the algorithm believes there is a strong periodic signal in the light curve.

Figure 4: BLS Periodogram

As we can see, the algorithm has picked out the strongest signal at a period of 3 days, just as we expected as this is the true period of the signal I injected. We also see peaks (of decreasing power) around 1.5 days, 6 days, 9 days and 1 day. You may notice that these are all multiples or fractions of the true period. We refer to these as period aliases and it’s expected that they will produce peaks in the BLS periodogram. Sometimes these can even be the true period of a signal, which leads us to our next metadata field.

‘peak’ is the strength of the peak according to the BLS algorithm, ranked by SDE. 1 is the strongest peak (our 3-day period in the example above), down to 5 for the 5th strongest. Anything less significant than this doesn’t have a phase-folded image generated for Planet Hunters NGTS. Currently only Peak 1 objects are on the Planet Hunters NGTS site as these are most likely to correspond to the true period of a transiting object but we plan to include plots for other peaks in future.

‘prod_id’ and ‘obj_id’ are internal identifiers that are used as labels for the stars. These values therefore only have meaning to the NGTS science team.

‘plot_type’ simply refers to which workflow this subject is from:

  • ‘primary_phased’ is for subjects in the Exoplanet Transit Search. These plots show where we think the primary eclipse of the phase-folded light curve is. See Figure 1.
  • ‘secondary_phased’ is for subjects in the Secondary Eclipse Check. These plots show where we think the secondary eclipse could be, around phase=0.5. See Figure 5 below
Figure 5: Secondary eclipse check
  • ‘odd_even’ is for subjects in the Odd Even Transit Check. These plots show the odd (1st, 3rd, 5th, etc.) transits in green and the even (2nd, 4th, 6th, etc.) transits in magenta. If the depths of the odd and even transits don’t match then that’s a clear indicator that we’re looking at an eclipsing binary rather than an exoplanet transit. See Figure 6 below for the Odd/Even image corresponding to the subject shown in Figure 1.
Figure 6: Odd/even transit check

‘stellar_rad’ is the radius of the host star, expressed in units of Solar radii (i.e. a star with stellar_rad equal to 2.0 has a radius twice the size of our Sun). This can be used to estimate the radius of the transiting object. First, we estimate the depth of the transit. For the subject shown in Figure 1 (which is confirmed planet NGTS-5b), the transit depth is around 0.025 (or 2.5%), since the flux drops from 1.0 to 0.975 (typo corrected). We can then use this, along with the stellar radius of 0.75 Solar radii, in the equation:

R_p=9.73 \times R_* \times \sqrt{Depth},

to calculate an estimated planetary radius of 1.15 Jupiter radii. You can read more about how planet radius, stellar radius and depth are related here. The equation I use here is a quicker method as the multiplication factor of 9.73 is such that if you use R* in solar radii, as given in the metadata, then your answer will be in Jupiter radii. You can use this method to work out whether a transiting object is plausibly a planet, typically anything above 1.5 Jupiter radii is unlikely to be a planet.

(Note sometimes the stellar radius value will say ‘nan’ or ‘unavailable,’ this just means we don’t have a good measurement of the star’s radius.)

Extra fields

‘primary_phased,’ ‘secondary_phased’ and ‘odd_even’ provide links to the different plot types for subjects that have passed into the secondary and odd/even workflows. This makes it easier to vet candidates as you can view all the available data quickly and easily.

Finally, we have the ‘known_planet’ field. This will only appear for previously known exoplanets (such as NGTS-5b above) and means that the subject image you are viewing corresponds to a planet that appears in the NASA Exoplanet Archive. Finding known exoplanets is a useful test of the detection efficiencies of the project as a whole, and it’s always exciting to know if you’re looking at data from a real exoplanet system too! Some subjects on the Planet Hunters NGTS site are still undergoing follow-up by the NGTS science team so might be strong planet candidates but won’t be confirmed and published exoplanets. This means that there will be subjects not marked as known planets in their metadata, but the NGTS team may already be aware of it and have put in the work to begin characterising the system further.

We hope this blog post can serve as a useful reference in future as you get involved with Planet Hunters NGTS.

U- or V-shaped dip? How to spot the difference?

When searching for exoplanets, the shape of the transit can tell us a lot about what object we could be looking at. For the Planet Hunters NGTS exoplanet transit search, we ask you to identify if a transit is U-shaped or V-shaped, as well as whether there’s stellar variability, data gaps or no significant dip in the flux at all. An exoplanet transiting a star will typically produce a U-shaped dip, but there are situations where that isn’t the case (more on that below). Meanwhile an eclipsing binary (two stars orbiting each other) will produce a V-shaped dip most of the time.

The first plot (Figure 1) shows a clear V-shape produced by an eclipsing binary system. In this case, the transiting star only partially eclipses the target star, meaning that it passes across the edge of the disk of the target star but never passes fully in front. This means that the point of minimum flux doesn’t last long before the flux starts to increase again.

Figure 1: Partial eclipse in an eclipsing binary system

The defining difference between U- and V-shaped dips is the angle of the sides of the transit, or ingress and egress to give them their scientific names. Ingress is when the transit begins and the flux is decreasing to the minimum (position 1 to position 2 in Figure 2), while egress is when the transit is ending and flux starts to increase back to the normal level (position 3 to position 4 in Figure 2).

Figure 2: Diagram of the positions of an object eclipsing a star and the resulting light curve (brightness = flux). [Ref]

V-shaped dips have sides that are at an angle whereas U-shaped transits will have a steeper decrease and increase in the flux, so much so that the sides of the transit will be almost vertical. The reason V-shaped dips have angled sides is because the object blocking out the light is typically (but not always!) another star. The eclipsing star is large (compared to a planet) so takes more time to pass fully in front of the target star, therefore the decrease in flux happens over a significant time period and we get an angled ingress (likewise for the egress as the star stops blocking light).

The angled sides are more pronounced in Figure 1, but don’t be fooled by dips with a curved base like Figure 3 below! If the transit has angled sides then it’s still a V-shape! The curved base of the transit is caused by a phenomenon called ‘limb darkening,’ where the central disk of a star appears brighter than the edge. The eclipsing star in this system is not just grazing the limb of the target star either, which is why the minimum flux of the transit is sustained for a range of phases.

Figure 3: V-shaped eclipsing binary with a curved base

How vertical is vertical? Sadly there isn’t a clear answer to this, which is why we use human vetting rather than just a computer to check these light curves. The example below (Figure 4) is the light curve for confirmed exoplanet HATS-43b, which was classified as U-shaped by all 20 volunteers who viewed it. This is a clear example of the near vertical drop in flux for the sides of the transit. The small radius of the planet compared to its host star means that it almost instantly passes through the ingress and egress phases, compared to the time taken by a larger star in an eclipsing binary system.

Figure 4: HATS-43b. A known exoplanet spotted by Planet Hunters NGTS!

But wait! V-shaped dips can still be exoplanets too! Just like the partial eclipse that produced the sharp, V-shaped dip in Figure 1, an exoplanet can perform a grazing transit where it just crosses the limb of the star and doesn’t go over the centre of its host star’s disk. This will produce a very shallow V-shaped dip, therefore we will get round to searching these classifications for potential exoplanets too! The sides of the dip appear more angled due to the shorter total duration of a grazing transit; it’s very likely that the scale of the x-axis on the plots (the phase) will show a much smaller range of numbers due to how short these transits will be. The ingress and egress times will be similar to a regular transit but the central dip is much shorter. The limb darkening effect also has a more obvious effect on the shape of the dip, which we can see in the light curves below for a near-grazing transit by WASP-174b (Figure 5). The dip has angled sides due to the zoomed in x-axis and has a curved base due to limb darkening. This is a classic curvy V-shape, but it’s also a real exoplanet!

Figure 5: Transit light curves for WASP-174b showing a grazing transit. [Ref]

There isn’t a definitive answer for when a curvy V becomes a regular U-shape, but as always your intuition and best guess is what we want! We hope this blog post makes it easier to spot the differences between U- and V-shaped dips when you’re classifying light curves on the Planet Hunters NGTS site, and remember you can always check the Field Guide or ‘Need some help with this task?’ for more help. There’s also the team of researchers and moderators on the ‘Talk’ forums who will be happy to help!

Sean & the Planet Hunters NGTS Team

The Next Generation Transit Survey needs you

Today we a guest blog by Sam Gill. Sam Gill is a research assistant at the University of Warwick. He studies long-period planets discovered with TESS and leads the monotransit working group within NGTS. He also researches red dwarfs to empirically calibrate the physical properties of the latest-type stars and is a keen spectroscopist and binary star enthusiast. In his free time, Sam enjoys Brewing and hiking with his beagle, Bruce.

In 2015, more than half of all known exoplanets with masses determined to better than 20 per cent were found from ground based surveys for transiting exoplanets. One such survey which you may know from the successful Zooniverse project searching for variable stars is the Wide Angle Search for Planets (WASP), with installations in Tenerife and South Africa. Both camera arrays have taken over 430 billion measurements of 30 million stars and has found over 150 new planets with many more candidates.

The WASP telescope and cameras located in South Africa.

Typically, WASP found planets spanning the masses of Saturn to a few times of Jupiter, along with many low-mass stars which have radii similar to Jupiter. If we look at the mass-radius diagram for planets (with masses known to better than 20%) found around other stars, we see that there is a dearth of those with masses below Saturn. These planets are notoriously hard to identify around stars like our Sun because of their small comparative size. However, these planets should be detectable around much smaller stars with ground-based telescopes which is where the Next Generation Transit Survey (NGTS) comes in.

NGTS is located at the Paranal observatory and consists of 12 fully-robotic telescopes operating at red-optical wavelengths (520-890 nm). This maximises sensitivity to bright and relatively cool and small stars enabling us to find planets less massive than Saturn. With a field of view of 2 degrees per telescope and an average cadence of 13 seconds, NGTS can take over 200 GB of images each night which include many thousands of stars.

The 12 NGTS telescopes at Cerro Paranal.

Data from NGTS is processed so that the relative brightness of each star can be measured with the influence of the atmosphere mitigated. These data can then be searched using a box-fitting algorithm which searches for periodic dips in a stars brightness which is a characteristic trait of transiting exoplanets. The box-fitting algorithm is powerful and can find many potential planet candidates in our data. The NGTS consortium tries their best to find as many planet candidates as they can but some of these candidates turn out to be false positives. We are successfully finding planets in NGTS data, but the size of our datasets are so large the we may have overlooked some of the most promising planet candidates. That is were you come in.

Phase folded NGTS data of NGTS-2b (left panel) with the box least-squares algorithm power spectrum (right panel)

The aim of Planet Hunters NGTS is to find planets in NGTS data. To do this, we have created a variety of plots (described in a future blog post) embedded in multiple workflows which will help identify promising candidates and many other interesting systems. Today, we just launched two new workflows that you can check out the Odd Even Transit Check and the Secondary Eclipse Check to help vet the best candidates identified by the Exoplanet Transit Search workflow. With your help, we can focus our efforts on the most promising systems and work towards completing a broader consensus of exoplanets. We look forward to you classifications!

More about Planet Hunters NGTS

We were excited to announce yesterday a new chapter in the Planet Hunters project with Planet Hunters NGTS. Here’s a bit more background for those of you who are new to the exoplanet hunt.

The Next-Generation Transit Survey (NGTS) has been searching for extrasolar planets (exoplanets) around other stars for over 5 years but we can’t be sure we’ve found them all without your help. Exoplanets are planets outside our own Solar System. We know of their existence from various techniques, most popularly the exoplanet transit method. This method works by observing a star and watching for regular dips in the amount of light emitted by the star. These dips can be caused by other stars (“binary companions”), exoplanets and other strange objects but we can use the size and shape of the dips to pick the most promising planet candidates. Smaller dips typically correspond to exoplanets, for example Jupiter causes a 1% dip in our Sun’s light for any aliens looking our way. The best planet candidates will be chosen for follow-up observations with different techniques to hopefully confirm whether they really are planets!

Planet Hunters and Planet Hunters TESS used data from NASA space telescopes to search for these dips. This project differs slightly as we’re using the NGTS facility which sits atop a mountain in Chile, surveying the sky every night with its 12 telescopes. Computers have searched the NGTS observations to find these dips but the NGTS team can’t check everything the computer finds as there are just too many candidates. Not every dip is caused by a planet but our handy tutorials will guide you through and turn you into an exoplanet spotting expert.

Finding more exoplanets will allow us to learn more about how planets are formed and how they evolve, which in turn will teach us more about our own Solar System and the Earth we live on. If we can understand the architecture of our own Solar System and other exo-planetary systems, then we can better approach the search for life beyond Earth.

We look forward to working together with you and hope you enjoy the project!

Sean & the Planet Hunters NGTS team
