Hot Friends of Hot Jupiters: The WASP-47 system
Ever since a mechanical failure caused the end of the original Kepler mission in 2013, the Kepler spacecraft has been conducting a survey of new stars, searching for planets across the ecliptic plane in its new K2 mission (https://blog.planethunters.org/2014/12/12/more-about-the-k2-campaign-0/). The K2 dataset is a goldmine of fascinating science results. One such result is the recent discovery of two new planets in the WASP-47 system.
Until a few months ago, everyone knew that hot Jupiter planets don’t have “friends”, or nearby small planets in close orbits to the host star. These other planets had been searched for extensively, through radial velocity measurements, analysis of the transit times of the hot Jupiters, and even through transits by Kepler during its original mission. All of these searches turned up nothing.
This all changed one day last July, when Hans Martin Schwengeler, a Planet Hunter who enjoys poring over Kepler and K2 data searching for new transiting planets by eye, came across the telltale signatures of two extra transiting planets in the hot Jupiter system WASP-47. WASP 47b was, by all indications, a perfectly normal hot Jupiter — in the discovery paper, Coel Hellier wrote “With an orbital period of 4.16 days, a mass of 1.14 Jupiter masses, and a radius of 1.15 Jupiter radii, WASP-47b is an entirely typical hot Jupiter”. The discovery of additional transiting planets dramatically changed the narrative.
When Hans came across the planets, he posted them to the Planet Hunters forum, where he and other citizen scientists discuss their findings. Andrew Vanderburg came across the post suggesting that a known hot Jupiter had planetary companions. Using his K2 data reduction pipeline (https://blog.planethunters.org/2015/01/08/a-recipe-for-making-a-k2-light-curve/), he analyzed the light curve and confirmed Hans’s discovery – there were additional planets in the system, a super-Earth at a 0.8 day period and a Neptune at a 9 day period!
Andrew emailed me, and at first I hardly believed that the lightcurve was real. How could a hot Jupiter have close-in planetary companions? I knew people had been looking for this type of companion for years via both photometry and transit timing variations, but the lack of discoveries indicated that they might not exist. I performed some numerical stability simulations (because it seemed at first like this system could not be dynamically stable!) and sure enough, the N-body simulations showed that the system was likely stable on timescales of 10 million years.
At that point, we formed a team with Hans, Andrew, MIT Professor Saul Rappaport, University of Michigan Professor Fred Adams (my advisor!), and me. Once this team was formed, we devoted ourselves to understanding as much about the systems as we could. Some work by Saul and Andrew confirmed that the planets were all orbiting the same star, Andrew fit the lightcurve to get the planet properties, and I ran more stability simulations. Soon enough, Fred suggested that I look at what transit timing variations (or TTVs, which happen when transits come late or early because of the gravity of other planets in the system) we would theoretically expect to see from the system – and I found that for the outer two planets, the TTVs should be observable.
I then measured the TTVs from the lightcurve, and sure enough – there was something there. After some discussion, we realized we could measure the masses of the planets from those TTVs! Though I had never done dynamical fits before, I wrote the code to utilize Kat Deck’s TTVFAST code in a Markov Chain Monte Carlo fit. With some advice from Kat and help from Fred, I eventually got the fits working and we were able to measure or put limits on the masses of each planet.
In a little less than two weeks, we had put together a paper deriving planet properties from the lightcurve, mass limits from the TTVs, and showing that you CAN detect companions to hot Jupiters using TTVs!
This result is exciting because it is the very first time a hot Jupiter has been found to have such close-in other planets. Before this discovery, it was unclear if hot Jupiter could have nearby friends, as they might destabilize the friends’ orbits during migration. This discovery opens up new questions about how these systems form – it is possible that there is more than one migration mechanism for hot Jupiters.
The paper on WASP-47 and its new companions, which was published earlier this week in ApJ Letters and is available at http://arxiv.org/abs/1508.02411, was a collaboration between myself (Juliette Becker, a graduate student at the University of Michigan), graduate student Andrew Vanderburg (Harvard CfA), Professor Fred Adams (the University of Michigan), Professor Saul Rappaport (MIT), and Hans Schwengeler (a citizen scientist).
Comets or Aliens?
Let’s deal with the big question first. Has Planet Hunters discovered aliens?
The answer is no. But that doesn’t mean that all of the press who have written about us in the last 48 hours, sending a flood of volunteers to the site, are completely misguided. Let me backtrack…
A few weeks ago we submitted the ninth planet hunters paper to the journal, and that paper is now available on the arXiv service. Led by Tabetha Boyajian at Yale, it describes a rather unusual system (what the Atlantic called the most interesting star in the Galaxy), which was identified by Planet Hunters, four of whom (Daryll, Kian, Abe, Sam) are named on the paper*. They spotted a series of transits – which is normally what signifies the presence of a planet – but these were unusual.
The star’s light dimmed for a long period of time, loosing a fifth of its brightness for days or even months at a time. More mysteriously, the duration of the dips was not always the same, so this couldn’t possibly be a planet. This behaviour is unique amongst the more than a hundred thousand stars studied by Kepler – we have a bone fide mystery on our hands.I think the team’s immediate thoughts were that it must be the star itself that’s misbehaving, but stars aren’t known to behave like this and some careful follow up reveals it to be nothing more than a normal F-type star, slightly hotter and more massive than the Sun. So it’s not the star, and we’re sure too that it’s not Kepler itself misbehaving; something is really blocking the light from this star.One option is a disk of dust around the star. It’s from such disks that planets form (see DiskDetectives.org for more on this!) and so that wouldn’t be too surprising. Yet enough dust to cause the deep eclipses we see would glow brightly in the infrared, and there’s no sign of a strong infrared source around this star.
You can read the paper to find out what else we considered, but we think the best explanation is that there is a group of exocomets in orbit around the star. Comets are an appealing scenario to invoke because they would be faint in the infrared, and because they move on elliptical orbits, accounting for the random timing of the transits and their different lengths. Such a group of comets could have come from the breakup of a larger object, leaving a cloud of smaller remnants in similar orbits behind.
Much detailed work is needed to flesh out the details of this (pleasingly outlandish!) scenario. One possibility is that the recent passage of a nearby star triggered the cometary bombardment whose effects we’re seeing. The paper is currently in the peer review process and there is – of course – the possibility that there is a perfectly sensible solution we haven’t yet considered. However, so far over 100 professional scientists have had a look at the lightcurves and not managed to come up with a working solution.
One other proposed theory is that this pattern of behaviour is due to a fleet of alien spaceships in orbit around a star, a possibility considered by Jason Wright and collaborators here. Jason and co were tipped off about our discovery by the team, and it’s included in their paper as an object with ‘a bizarre light curve consistent with a “swarm” of megastructures’, much to the excitement of much of the internet. ‘Consistent with’ isn’t the same as ‘definitely is’, of course – and personally, my money is very firmly on the comet theory with a side bet on weird stellar behaviour – but until those models are properly investigated alien spaceships remain a possibility. The Wright paper points out this star is now a supremely interesting target for SETI (the search for extraterrestrial intelligence), and we agree – I hope radio astronomers will go and listen for signals. We need more observations of transits in action, too, and will be trying to follow-up to try and work out what’s actually going on.In the meantime, who knows what else is lurking in the Kepler data? Planet Hunters is about finding planets, but this ability to identify the weird and unusual is one of the project’s great advantages. Get clicking at www.planethunters.org, and let us know through Talk if you find anything a little odd.
Chris
* – This isn’t the final version of the paper, and we have more names to mention too before we’re done.
Kepler 2.0
It’s up!
The first science data from the new Kepler K2 mission is up on Planet Hunters just waiting to be looked at for new planets, eclipsing binaries, and whatever else lies in the data. This is a set of completely new stars! (Check out the K2 page for more information about the K2 mission.)
This data may go fast, so get classifying now! But don’t worry, there will be more K2 data when the next quarter is released. And when each K2 quarter is finished, keep classifying stars from the four-year Kepler mission to help solve one of the biggest mysteries in astronomy: how common are planets?
– Joey
Exploring the Tiny Planetary System of Kepler-90
We recently posted news of a Planet Hunters planet discovered as part of a seven-planet system. Dubbed Kepler-90 this system is a peculiar microcosm of our own Solar System, with small (probably rocky) worlds in the middle, and larger (probably gaseous) worlds on the outside. The major different being that the outermost planet in this system is as far from the star as Earth is from the Sun. The other six planets in this system were already known about, but thanks to volunteers on Planet Hunters (http://planethunters.org) we now think that there are seven worlds circling this stars, which is just a little brighter than our Sun.
To celebrate this fact I have created a model of the whole planetary system in Celestia, an awesome, cross-platform, open-source package that lets you explore space. You can download the Celestia files model directly here or watch the video below to be taken on a tour of Kepler-90 and it’s seven worlds.
In this video, I’ve given the newly discovered Planet Hunters candidate some fetching green rings – which we do not have any evidence for or against. Also keep in mind that we know very little about what most exoplanets look like, so we’ve used artistic license to give them all different appearances, often using the surface of what might be analogue worlds in our Solar System. Maybe you can spot some familiar surfaces amongst them!
This system has some great features that make it interesting. The outermost world is roughly the the size of Jupiter but orbits at almost exactly the Earth-Sun distance of 1AU. A Jupiter-like world in an Earth-like orbit has been seen before in Planet Hunters discoveries. The middle planet in this system is at the same distance from this star as Mercury is from our Sun, but is six times as large. The rest of the planets whizz around in even smaller orbits. This star is a little hotter than our Sun so they are pretty scorching places with surfaces temperatures in the hundreds of degrees – nearly a thousand for the innermost planets.
The two innermost planets are roughly Earth sized and are really cool. The innermost one is 1.02x the diameter of Earth and the next is 1.18x. We assume that they are both rocky since they are so small. They orbit the star in just 7 days and 9 days respectively and are very close together. So close in fact that if you’re living on the inner, smaller planet then every few weeks, for about a week, the second planet appears in the sky about half the size of our full Moon.
Every year I see the rumour going round that Mars is going to be as big as the full moon. It will never happen for us – but on the tiny worlds circling Kepler-90, it happens all the time.
Update: The system used to be called KOI-351 but was given the name Kepler-90 just a day after this post went live. I have updated the name of the system in the text.
[Cross-posted on Orbiting Frog]
A slightly unusual look at PH1
One of the many varied things I get to do with my time is act as an advisor to the Oxford Sparks project. As part of our mission to inform the world about the wonderful science this place is involved in, we get to produce animations like this :
The eagle-eyed will have spotted that there’s a world in there familiar to Planet Hunters volunteers, as our slightly intrepid hero is whizzed past PH1. There’s another interesting link, I think, between the two projects; both planet hunters and the animation take us to the cutting (some would say bleeding edge) of science.
Pretty much everything in the animation is open to question (and you can read more background over on the main Sparks site) – we have only weak evidence that there was a fifth giant planet in the Solar System, and many question the portrayal of the sudden bombardment of the Moon as shown here – it’s difficult to tell whether the evidence we have points to a true sudden bombardment or the mere end of a longer period of increased impact probability. On the broader questions too, there is disagreement – what sort of world would really be suitable for life? Do Earth-like planets such as the one we end up with really exist out there? (Probably – but we’re not sure yet).
All of this is ok. My aim – our aim – was to present science with the ink still wet rather than wait for the final draft. After all, it’s most inspiring when we can still make discoveries, and hopefully the video will make people think – and maybe even make a few discoveries of their own on Planet Hunters.
Chris
The Transit of Venus and the Scale of the Universe
I’ll start by introducing myself as I’m not involved in Planethunters, but Meg asked me if I could write an article for you here about the Transit of Venus after I mentioned on Twitter that I was enjoying researching the topic for a talk I’m giving. I’m a Research Fellow at the Institute of Cosmology and Gravitation at the University of Portsmouth/SEPNet (South East Physics Network), and I’m funded by The Leverhulme Trust as an Early Career Fellow to work on Galaxy Zoo science. I’ve been part of the Galaxy Zoo science team since 2008 and I lead the studies of the interesting class of red spirals which were found by Galaxy Zoo, and am also interested in the role bars seem to have in slowing down star formation in spiral galaxies. You can read blog posts I’ve done for the Galaxy Zoo blog, which include explanations of these studies at http://blog.galaxyzoo.org/author/karenlmasters/
On 5th/6th June 2012 Venus will pass between the Earth and the Sun. It’s shadow will cross the Sun taking about 6 hours in total, although the length of that which is visible varies significantly depending on where you live on Earth. In the USA the beginning of the transit will be visible as the Sun begins to set on 5th June, while in the UK we’ll see the end of the transit after the Sun rises on 6th June.
The planet Venus orbits the Sun inside the orbit of the Earth, and passes between the Earth and the Sun quite frequently. However the planes of the two orbits aren’t quite aligned, so most of the time Venus passes either above or below the disk of the Sun. Actual transits are rare, but very predictable. They happen in pairs separated by 8 years, and then after each pair follows a period of either 121.5 or 105.5 years without any transits. The 2012 transit is the second of a pair – astronomers around the world viewed the first transit of the modern age in 2004, and the next transit won’t happen until December 2117.
To view a transit of Venus does not need to be technically challenging, but in its simplest form involves looking at the Sun – so some safety precautions must be taken. You must never look directly at the Sun! Serious eye damage or even blindness could occur if you did that, so take this warning seriously! My advice for viewing the transit if you are not a keen amateur astronomer, or able to get to a viewing party, is to either get your hands on a pair of Safe Solar Viewers (like these ones from Astronomers Without Borders), or to view the event via a web cam (like this one from Hawaii where the entire transit is visible, or GLORIA which is planning to show feeds from Australia, Japan and Norway). This last method also has the advantage (especially for UK viewers) of not being affected by local cloud cover, and has exactly zero risk of eye damage! If you come to one of my talks I hope to have solar viewers to hand out.
So why should you care about a black dot crossing the Sun, or perhaps more pertinently, why do I, and an astronomer who studies galaxies, and works in a cosmology department care enough to write a blog post about it and give several talks? Well historically transits of Venus have been very important in helping astronomers understand the scale of the solar system, and from that the scale of the Universe. Basically when Venus crosses the Sun we know that it, the Sun and the Earth are all in a straight line. Very slight differences in the viewing angle from two observers on the Earth can then be used along with our basic knowledge of trigometry to measure the distance to the Sun. For over 100 years, the distance to the Sun measured this way was the most accurate measurement we had.
From knowing the distance to the Sun, we can use slight changes in the apparent position of nearby stars as the Earth orbits the Sun to get their distances (more triangles – this is called the parallax method), and from those stars we calibrate methods which use stars of known or estimated brightness to estimate distances to nearby galaxies, and we jump from distances to nearby galaxies to more distant galaxies and eventually the whole universe. The distances to faraway galaxies have taught us that the universe is expanding and started in a Big Bang around 15 billion years ago, and even if we go to the observations that suggest the universe contains a mysterious “Dark energy” (which won the 2011 Nobel Prize in Physics), they are ultimately based on us knowing the distance to the Sun. So that’s why I think it’s important.
Here in Portsmouth we’re running a workshop about the transit of Venus on HMS Warrior, in the Portsmouth Historic Dockyard. We plan to demonstrate the triangulation method by using it to estimate the distance from the Warrior to the local landmark “The Spinnaker Tower”. Two people will stand on the desk and we’ll mark out from them the direction to the Spinnaker Tower. Making one of the angles a right angle, we can then estimate the distance to Spinnaker (which is about 300m) by d = b/cos A, where A is the other angle, and b is the distance between the two people on deck.
Google Map image of Portsmouth including HMS Warrior (top) and The Spinnaker Tower (bottom).
This isn’t exactly the method used in the historical measurements, but it demonstrates the idea. Of course when observing the transit of Venus from two widely separated places on Earth, it’s not exactly easy to measure the angle between the sight lines. What Edmund Halley figured out in 1678 was that if you could measure the times when Venus stars and ends its transit you can get at the same information.
In all of recorded history, we have records of a total of six transits of Venus that have been observed (1639, 1761, 1769, 1874, 1882 and 2004). You have to feel sorry for Johannes Kepler, who predicted the transit which occured in 1631, but then died in 1630. No-one is recorded to have used his prediction that year. Jerimiah Horrocks and Willam Crabtree (two British astronomers who were friends) have the honour of being the first humans known to have seen Venus transit. Horrocks found and improved Kepler’s earlier predictions, and both men successfully observed the 1639 transit from Northern England (in December!).
Scientific observation of the transit started in the 18th century following Halley’s suggestion to use it to measure the distance to the Sun. There is a hugely rich and entertaining history of these expeditions to view the transit, and several books have been published. I’m just going to tell you a couple of the stories which struck my interest! A lot more, and links to some of the books can be found via the Wikipedia page on Venus Transits, TransitofVenus.org, and TransitofVenus.nl.
For the 1761 transit, two famous explorers got involved. Mason and Dixon (still in Britain, and before they set off to map the USA) were commissioned by the Royal Society to observe the transit from Sumatra. They met in Portsmouth, and set sail from here on HMS Seahorse (which a decade later would have a famous midshipman named Horation Nelson). Enroute to Sumatra they got attacked by the French (the French and English being at war then), and decided to give up. They wrote the Royal Society of their intentions and were promptly told they better get right back on the ship to observe the transit or else. They did, and eventually ended up viewing if from South Africa.
The 1769 transit also had some famous viewers. Captain Cook was ordered to set sail in HMS Endeavour, partially to observe the transit from Tahiti, but then to continue on and look for the mythical “Australia”. On that trip they didn’t find Australia, but they did land and claim New Zealand. And in Tahiti, they set up a “Fort Venus” from which to stay safe from the natives and view the transit. This voyage is being repeated this year in a replica vessel, and you can follow along at the HMB Endeavour Website.
These 18th century observations results in a measurement of the distance to the Sun of 153+/-1 million kilometers, which was a huge improvement over previous estimates, but not as good as they expected. The timings were thwarted by something which came known as the “black drop effect” where the shadow of Venus seems to bleed into the edge of the Sun. This meant that the start time of the transit could not be measured to better than a few seconds.
The black drop effect, photographed in 2004.
In 1874 several more expeditions set out, including several on Royal Navy Ships, such as HMS Volage, one of the largest mixed sail and steam ships ever built, which ferries the British expedition to the Kerguelen Island in the Southern Indian Ocean. Such measurements helped improve the distance measurement to 149.59+/-0.3 million kilometers. By 1881 it had been decided the distance to the Sun could be estimated better by other methods, although several expeditions still set out, and the first photographs of the transit were taken.
A photograph of the 1882 transit, taken by a US expedition.
The current best distance to the Sun is 149.5978707 million kilometers, +/- 3 metres, measured using radar ranging to the inner planets. It’s known so accurately that we can measure it’s changing, growing about 15 metres every century.
The first transit of Venus to happen in the modern age was in 2004. You can find videos of this event (like the one below), which I was lucky to view from a small observatory near Ithaca, NY while I was studying for my PhD in Astronomy at Cornell University.
For the 2012 transit, apart from encouraging people to view the event as a last in your life time chance, there are couple of new developments. First smart phone technology which didn’t even exist in 2004 has allowed the development of a “Transit of Venus Ap“. In this Ap you can input the time you view the transit starting and/or ending, and participate in a global experiment to measure the distance to the Sun. Download the Ap in advance to practice inputing your measurement.
Interest in exoplanets has also significantly grown, including the signature that the atmospheres of those planets might have in the observed spectrum of a star when the planet is transiting. The Hubble Space Telescope will try to simulate this type of observation during the transit of Venus, observing the light from the Sun reflected by the Moon (if HST looked at the Sun it would be destroyed) to search for the signature of the atmosphere of Venus. You can read more about the plans on the NASA website.
Anyway I encourage you to get out there, or get online and view the last transit in our lifetime. Use the resources attransitofvenus.org, to work out the timings of the transit from your location, or search for local events. Other useful resources are the Royal Astronomical Society page on the Transit of Venus, in the UK, the HM Nautical Almanac Office. Also of possible interest, the Royal Observatory, Greenwich has a Venus Transit page, and a special (free) exhibit running until September 2012. And of course there’s a special Planethunters page on the transit too.
Transit of Venus: Live
In June 2012 people all over the world will watch the planet Venus transit across the Sun. Planet Hunters is all about spotting planets as they move across the face of a star so we thought it would be good to share the event with everyone. Venus will pass directly between the Earth and Sun on the night of June 5th and the morning of June 6th. This historic event can be seen from many parts of the world and will not happen again for 105 years!
As the map above shows, most people will only see part of the transit. With the help of the GLORIA team, we’ll be showing a live feed of the whole event on the Planet Hunters site. The webcast is being streamed from Tromsø, Sapporo and Cairns and will feature commentary in English and Spanish during the key parts of the event.
Check out our guide to the Transit of Venus, which we’ll update as we approach the event itself. It covers a basic history of the transits, and include information on when and where to see it. It also links to other useful resources for the event, including a Transit Guide from the GLORIA group, and the NASA observers handbook links. We hope you’ll try to see the transit when it happens, but if you’re unable to for some reason, then the webcast means that you can still be a part of this last-chance astronomical event.
Awesome People: More from ZooCon1
Today we have a guest post by Jules, fellow Planet Hunter and zooite who attended the ZooCon1. Jules is a lead moderator and blogger for the Solar Stormwatch and Moon Zoo forums as well as a volunteer on the Zooniverse Advisory Board.
Just back from the very first #zoocon1 in Chicago. I attended as a volunteer on the Zooniverse Advisory Board. As Meg said it was a chance for the science teams from new projects to meet with and learn from representatives of current projects and for everybody to meet up with Zooniverse techies and developers. It made sense then for some of the “old hands” to present an overview of their own projects. Meg’s Planet Hunters talk was particularly interesting as it highlighted the value of Talk and the great collaborative work being done there by volunteers.
A brief foray into data reduction showed the kind of work necessary to make the clicks usable. For example, there are 5,508 stars with possible transits. Removing all pulsating stars, which can be mistaken for transits, reduced the number of candidates to 3,404. Further examination of these transits reduced the pool further to 77 transit candidates – a much more manageable number.

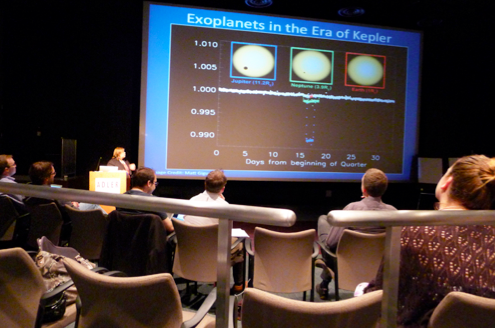

Here’s Meg in action demonstrating the light curves of different sized planets.
The discoveries Meg highlighted included a slide showing 4 planet candidates missed by Kepler one of which is being re-investigated because of the work done by Planet Hunters. Kepler 16, the circumbinary system, also got a mention as did the impressive volunteer-led analysis on cataclysmic variables and heartbeat stars.
Old Weather, Mergers and the Milky Way Project were also put in the spotlight. Afterwards someone from one of the new projects told me how amazed they were that volunteers would want to do more than just click and another told me that they found the Planet Hunters story particularly inspiring and wanted to know how Planet Hunters had attracted these “awesome people.”
Well that’s Citizen Science for you. Volunteers come with a great mix of interests, skills and the knack of finding treasure!
